High Tensile Strength 3K Carbon Fiber Sheet 8mm For Robotics

High Tensile Strength Exceptional Durability 3K Sheet Carbon Fiber

What is Carbon Fiber and Why Use It?

Carbon fiber (also known as carbon fibre) stands out in the materials world as one of the strongest and most lightweight materials on the market. Five times stronger than steel and one-third its weight, carbon fiber composites are ideal for any application that requires strength, durability, lightweight, and speed. You’ll see it most commonly in aviation and aerospace, robotics, medical equipment, unmanned aerial vehicles, race cars, boats, and all kinds of sports equipment from paddles and racquets, and bicycles to kayaks. And that doesn’t even count all the ways it’s used just for the way it looks!

Advantages of Carbon Fiber

Carbon fiber composites stand out from the crowd for several reasons. Here are a few:

• Lightweight – It is a low-density material with a very high strength-to-weight ratio
• High tensile strength – One of the strongest of all commercial reinforcing fibers when it comes to tension, carbon fiber is very difficult to stretch or bend as it has the ultimate tensile strength
• Low thermal expansion – It will expand or contract much less in hot or cold conditions than materials like steel and aluminum
• Exceptional durability – Carbon fiber has superior fatigue properties compared to metal, meaning components made of it won’t wear out as quickly under the stress of constant use
• Corrosion-resistance – When made with the appropriate resins, it is one of the most corrosion-resistant materials available
• Radiolucence – Carbon fiber is transparent to radiation and invisible in x-rays, making it valuable for usage in medical equipment and facilities
• Electrical conductivity – Carbon fiber composites are an excellent conductors of electricity
• Ultra-violet resistant – Carbon fiber can be UV resistant with the use of the proper resin

Features:

• Made of Carbon Fiber material
• Very Strong and Light
• Smooth finish
• High Tensile Strength
• Excellent quality
• Resistance to ultraviolet light.
• Anti-aging and corrosion resistance.

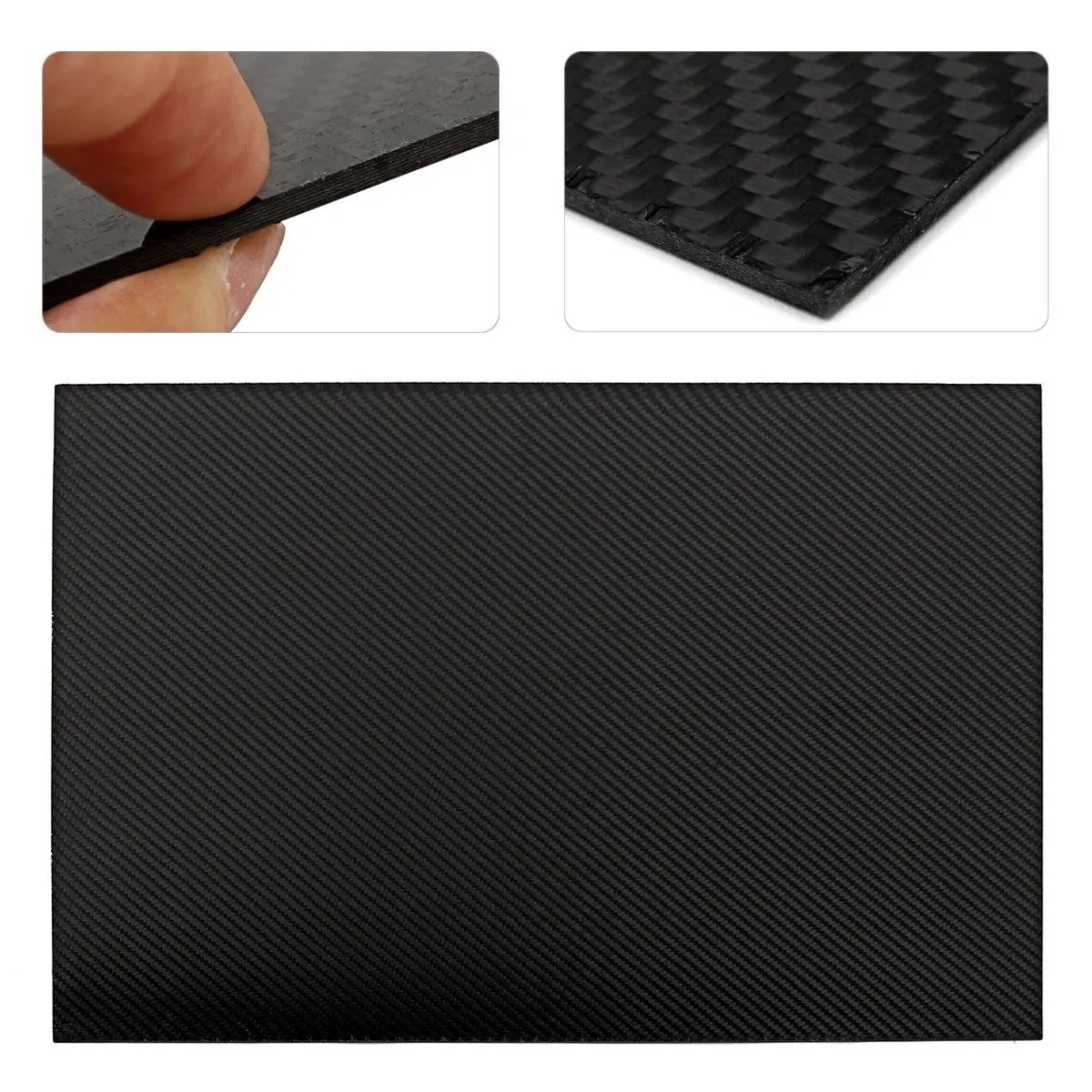

Carbon fiber sheet with two different finishes: one of perfect mirror-like gloss and smoothness and the other is a matt side that is perfect for adhesive bonding.

Dimensions: 500 mm x 1000 mm (0.5 x 1 meter) / 19.7 inch x 39.4 inch.
Thickness: 0.5 mm / 0.0196 inch (+0.2 mm tolerance).
Thickness tolerance: 0.2mm thickness tolerance ensured by infusion technology Consequently the sheet 0.5 mm may actually be from 0.5 mm to 0.7mm thick.
Weight: ~365 gr (0.89 lb).
Fiber orientation: 2/2.
Finish: one- side gloss, protection against UV, mat reverse side with surface ready for assembly with adhesive bonding.

Single-Sided Carbon Fiber Plate Specification:

FAQ:

1. Are you a factory or a trader?

We are a factory, with more than 16 years experience in composite products. We are one of the top manufacturers of carbon fiber tubes in China.

2. Can you send us a sample to check?

Yes, we can send you a free sample to check. You can pay the freight costs. When you place an order, we will return the freight cost to you.

3. What about the terms of payment?

T/T, L/C, Western union, etc

4. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.

5. What’s the difference between Chengcheng and other factories?

We have our own technology and research team. Our products strictly follow the quality control system in the composite products field.

6. Do you provide OEM service

Yes. OEM is welcome. We can make molds according to customers’ drawings and samples

8mm Carbon Fiber Sheet

Robotics Carbon Fiber Sheet

High Tensile 3K Carbon Fiber Panel
